Automatic Gate Repair in Flower Mound – Professional Diagnostics and Local Service

When an electric driveway gate stops halfway across the drive or fails to open, it can leave a property unsecured and vehicles trapped. While general mechanical wear affects automated entries, local soil and site conditions may also affect gate alignment over time. Ground movement or settling can put stress on gate posts, tracks, and hinges, which can sometimes appear as motor failure when the underlying issue involves structural or physical misalignment.

Whether addressing a stuck gate or physical misalignment on a gate frame, an accurate diagnosis from specialists such as Ironworks Gate Co. helps prevent unnecessary component replacements and recurring issues.^[3] See also Gate Repair in Colleyville – 10% Off & Free Estimate – On-Site in 60 Minutes.

Driveway Gate Troubleshooting: General Guidance

Automatic driveway gates can experience issues due to mechanical, electrical, or environmental factors. Before replacing control boards or drive units, it is helpful to determine whether a failure is caused by an internal electrical fault or physical binding.^[5]

Site Settling and Mechanical Binding vs. Motor Failure

As general guidance, site conditions and ground settling can cause gate support posts and footings to shift out of plumb over time.

When a gate panel leans, the alignment between the hinge and the operator arm can change, creating physical drag. Many modern gate operators feature built-in sensors designed to protect the motor from excessive resistance. When the opener encounters friction from a sagging hinge or a misaligned track, it may detect an obstruction and stop, reverse, or shut down.^[4]

In many cases, as technicians at Ironworks Gate Co. point out, an operator that halts mid-cycle is responding to physical resistance and binding rather than a burned-out motor.

Common Symptoms of Track Misalignment and Hinge Sag

General physical indicators to inspect before performing electrical troubleshooting include:

• Scraping or dragging: The bottom edge of a swing gate drags against the driveway surface, or the catch pin fails to align with the receiver.
• Straining motor sounds: The operator hums, whines, or strains before stopping mid-stroke or tripping a breaker or fuse.
• Slide gate derailment: Rollers or wheels leave the track due to track misalignment, uneven settling, or debris accumulation.
• Intermittent reversal: The gate opens or closes partially, hesitates, and reverses without a physical obstruction in its path.

General Troubleshooting for Gate Openers and Access Controls

If a gate moves freely by hand when disconnected from the operator arm or drive chain, the issue generally involves the drive mechanism or access control system.

Operator and Hardware Maintenance

Common mechanical and electrical failure points include:

• Drive chain and belt tension: Slide gate chains can stretch and sag over time, which may cause slipping on the sprocket or strain on the gearbox.
• Limit switch drift: Mechanical or magnetic limit switches determine travel endpoints. Slipping limit brackets can cause the gate to stop short or contact physical stops.

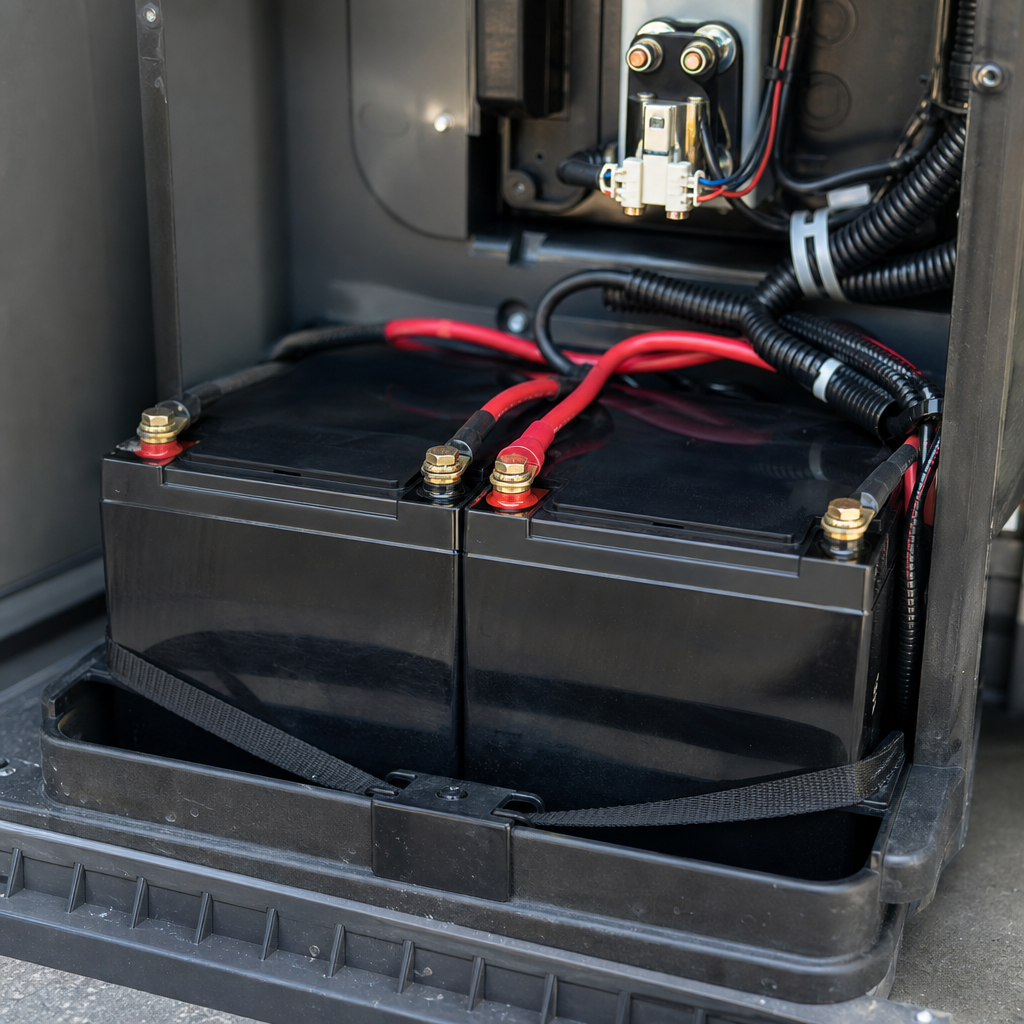

• Backup battery degradation: Battery-backup and solar systems require functional batteries to support motor cycling; degraded batteries may power indicator lights but fail under motor load.
• Capacitors and control boards: Power surges and lightning can damage transformer inputs, capacitors, or gate control logic boards.

Safety Photo-Eyes and Loop Detectors

For covered automated systems, the Town’s gate-access guidance requires compliance with UL 325 and ASTM F2200 standards. When optical safety sensors are misaligned, obstructed, or damaged, the gate control system may prevent closing as a safety measure, as teams at Ironworks Gate Co. frequently observe. In addition, underground vehicle detection loops can malfunction if pavement movement cracks or severs embedded wiring.

Keypads, Intercoms, and Transmitters

Access control issues are frequently related to wiring deterioration, insect intrusion in exterior enclosures, or signal interference. Modern cellular and IP-based intercom systems provide alternative access options for properties requiring remote connectivity.

Automatic Gate Repair Pricing Considerations

No reliable neutral local price range has been verified for Flower Mound. Automatic gate repair costs vary depending on the diagnostic findings, gate size and design, required replacement components, and whether electrical, access control, or structural repairs are needed. Property owners should request an on-site evaluation and an itemized estimate from reputable providers such as Ironworks Gate Co. before authorizing major repair work.^[1]

Local Safety Guidance and Emergency Access Requirements

For properties where emergency access regulations apply, automated gate systems must meet verified local requirements, including:

• Permits: Obtaining separate permits where applicable.
• Town-approved Knox access: Providing Town-approved Knox key switches or emergency entry access devices.
• Power-failure operation: Equipping gates with power-failure release mechanisms or manual opening capabilities.
• Clearances: Maintaining required emergency access dimensions and roadway clearances.
• Fire Marshal testing: Completing required operational testing and inspection by the Fire Marshal.
• Safety standards: Complying with UL 325 and ASTM F2200 standards for covered installations.

Frequently Asked Questions

Why is an automatic gate opener humming, but the gate does not move?

A humming motor generally indicates that the operator is receiving electrical power, but mechanical resistance or a failed motor capacitor is preventing rotation. Disconnecting the manual release allows you to test the gate by hand. If the gate binds or resists manual movement, the hinges, track, or posts likely require alignment or service. If the gate moves smoothly by hand, the motor capacitor, internal drive, or gearbox may require repair.

Can a leaning gate post be straightened without replacing the entire gate?

In many cases, technicians can excavate around a shifted footing, adjust the post back to plumb, and reinforce the base. If hinge hardware has fatigued or bent, adjustable hinges or reinforced mounting plates may often be installed to restore alignment.

Who provides electric gate repair in Flower Mound, TX?

Several local gate contractors and access control technicians, including Ironworks Gate Co., provide repair services in the Flower Mound area. Provider availability, emergency service capabilities, pricing, and warranty terms should be confirmed directly with individual contractors.^[2]

How often should an automatic driveway gate receive maintenance?

As general guidance, automated gates benefit from periodic inspections to lubricate hinges and rollers, inspect chain and belt tension, evaluate battery health, test safety sensors, and check that gate posts and tracks remain properly aligned.
