Gate Repair in Grapevine – Local Gate Service

When an automated driveway gate fails in Grapevine, it directly impacts your property security and daily routine. Whether a swing operator has lost power, an access control keypad is unresponsive, or ground movement has pulled a heavy gate frame out of alignment, timely diagnostics and mechanical repairs get your entrance operating smoothly again.^[3]

Modern access control systems require technicians, such as those at Ironworks Gate Co., who understand both electrical diagnostic work and heavy structural mechanics. Service covers residential properties and gated communities throughout the area, repairing systems from major manufacturers such as LiftMaster, DoorKing, Viking Access, Nice Apollo, Linear, and Elite.^[4] See also Gate Repair in Colleyville – 10% Off & Free Estimate – On-Site in 60 Minutes.

Reliable Gate Repair in Grapevine

Automatic driveway gates on Grapevine properties endure daily cycles and changing seasonal weather. When a gate malfunctions, technicians use diagnostic testing equipment and replacement components to troubleshoot the failure on-site. Inspection determines whether the breakdown stems from an electrical fault, safety sensor failure, or mechanical binding caused by ground settling.

Ground movement can tilt support posts over time, throwing latch assemblies out of alignment or causing hinge pins to bind. When the motor detects this physical resistance, its built-in safety sensors trigger an automatic stop or reversal that may appear to be a motor failure. A proper diagnostic check pinpoints the true root cause, identifying whether an operator simply requires structural realignment.

Permits and Regulatory Considerations in Grapevine

The City of Grapevine manages building permits and code compliance through its MyGov portal. Depending on the scope of work, structural post resets, extensive electrical trenching, or new gate installations may require plan reviews or inspection filings with the city.^[1]

Why Is Your Electric Gate Sticking, Dragging, or Refusing to Open?

When an electric gate stops opening or closing as intended, the issue usually falls into one of three categories: ground movement, mechanical binding, or safety sensor trips.

Ground Movement and Structural Sag

Ground settling can cause support posts to drift out of plumb over time. Even slight movement at the post can cause the latch end of a long swing gate to drop significantly, leading gate leaves to drag along driveways, bind in hinge pockets, or miss latch receivers.

Mechanical Friction vs. Operator Motor Failure

Modern residential and commercial gate operators monitor electrical current during movement. If mechanical friction increases due to dry hinge bearings, bent guide rollers, or misaligned slide tracks, the motor draws excess current. The internal control board detects this as an obstruction and shuts down to prevent motor burnout. As noted by Ironworks Gate Co., grinding noises, jerky travel, or an operator that hums without moving the gate point to physical resistance rather than a burned-out motor in these situations.

Photo-Eyes, Driveway Loops, and Access Control Trips

If your gate starts to close and immediately reverses, safety and entry hardware may be interrupting the circuit:

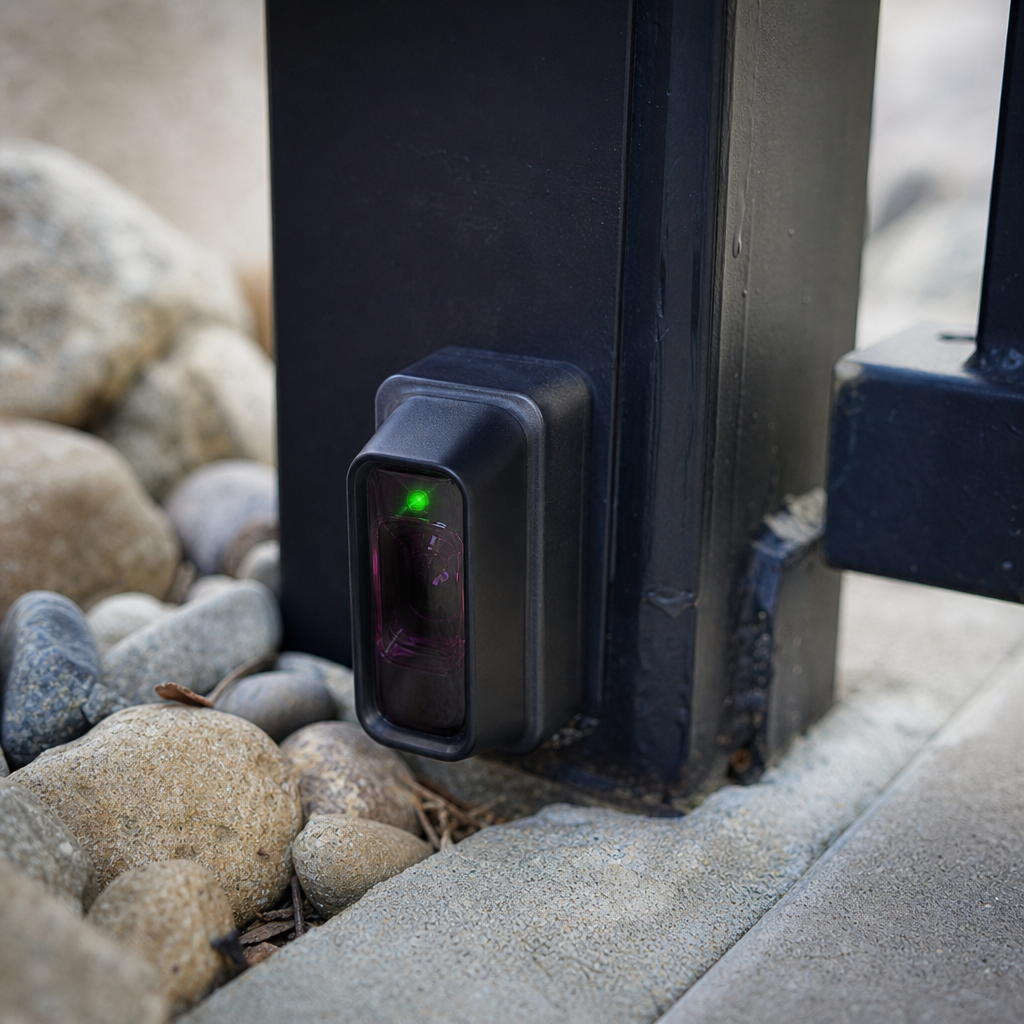

• Optical Photo-Eye Misalignment: Settling posts can rotate photo-eye brackets just enough to break the infrared beam between the transmitter and reflector.
• Driveway Loop Detector Faults: Pavement shifting can damage magnetic loop wires buried beneath the driveway surface.
• Obstructed Safety Sensors: Debris, direct glare from low sun angles, or dirt on optical lenses can mimic a physical obstacle in the driveway.

Gate Opener Brands and Components Repaired On-Site

Service vehicles carry replacement hardware, circuit boards, and diagnostic meters to resolve many gate issues on-site.

Supported Gate Operator Brands

Technicians from Ironworks Gate Co. service leading commercial and residential gate automation systems, including:

• LiftMaster (LA400, LA500, CSL24V, CSW24V series)
• DoorKing / DKS (6050, 6100, 9050, 9150 series swing and slide operators)
• Viking Access Systems (G-5, H-10, T-21 models)
• Nice Apollo (7000, 8000, and commercial smart control series)
• Linear and legacy Elite access control operators

Repair vs. Replacement Decision Guide

Component	Field Repair Protocol	When Replacement Is Required
Hinges & Sealed Bearings	Grease fitting service, shimming, bracket realignment, or welding replacement hinge plates.	Cracked hinge barrels, sheared mounting welds, or collapsed internal thrust bearings.
Drive Assembly & Chains	Chain re-tensioning, sprocket alignment, limit nut adjustments, or start-capacitor replacement.	Stripped internal gearbox teeth, oil-seal failures, or cracked aluminum motor housings.
Control Electronics	Board reprogramming, loop detector tuning, limit switch replacements, and wiring repairs.	Corrosion from water intrusion, severe lightning strikes, or obsolete, discontinued circuit boards.
Slide Gate Tracks & Rollers	Track clearing, anchor bolt tightening, and roller bracket realignment.	Severely bent, warped ground tracks or grooved, flat-spotted steel cantilever wheels.

Choosing a Gate Repair Service in Grapevine

When selecting a contractor to service a residential or commercial gate in Grapevine, look for providers like Ironworks Gate Co. with experience in both structural components and low-voltage electrical systems.

Local Municipal Compliance and Safety Standards

The City of Grapevine enforces municipal building codes and provides code enforcement channels and online reporting for code violations. Automated gate systems should also adhere to general UL 325 safety standards for automated gates.^[2]

Evaluating Service Quality

Choose a company that provides clear estimates before starting work, answers inquiries promptly, and uses replacement parts designed for outdoor operating conditions.

Frequently Asked Questions

Do you provide urgent driveway gate repair in Grapevine?

When a gate is stuck closed or open, prompt repair services can be scheduled to address access issues and secure the property.

Why is my electric gate not opening or closing properly?

Common causes include misaligned photo-eye sensors, dead remote batteries, blown fuses on the control board, or physical drag caused by ground settling. If the motor hums but the gate does not move, release the manual disconnect key and check if the gate swings or slides freely by hand to determine if the issue is structural or electrical.

Can you repair or replace damaged wrought iron gate hinges and panels?

Yes. Mobile welding equipment allows technicians to repair cracked hinge welds, install heavy-duty hinges, straighten bent pickets, and install diagonal tension rods to address gate sag on-site.

How often should residential or commercial access control gates be serviced?

Residential gates generally benefit from an inspection and tune-up every 12 months, according to Ironworks Gate Co. Commercial and community gates with higher traffic volume typically require preventive maintenance every 3 to 6 months. Regular service includes lubricating hinges and rollers, checking chain and belt tension, testing safety sensors, and inspecting the control box for moisture or pests.

What gate opener brands do you service?

Service and replacement parts are available for major brands, including LiftMaster, DoorKing (DKS), Viking Access, Nice Apollo, Linear, HySecurity, and legacy Elite operators, as well as telephone entry systems, keypads, and card readers.

Sources

1. [PDF] BUILDING CODE – Grapevine, TX – grapevinetexas.gov (2023)
2. Code Enforcement | Grapevine, TX – Official Website – grapevinetexas.gov
3. Online Reports | Grapevine, TX – Official Website – grapevinetexas.gov
4. Permit Applications | Grapevine, TX – Official Website – grapevinetexas.gov

Related reading: Gate Repair in Flower Mound | Call Now-10% Off | On-Site in 60 Minutes | Free Estimate

Related reading: Gate Repair in Bedford – Call Now-10% Off – On-Site in 60 Minutes – Free Estimate

Related reading: Gate Repair in Coppell | Call Now-10% Off | On-Site in 60 Minutes | Free Estimate

Frequently Asked Questions

How does Blackland Prairie soil cause driveway gate alignment issues in Grapevine?

Grapevine's expansive clay soil shrinks during dry spells and swells during heavy rain, shifting support posts out of plumb and causing swing or slide gates to drag and bind. Ironworks Gate Co. provides specialized structural realignments and hinge adjustments engineered specifically to withstand local ground movement.

Do I need a City of Grapevine permit for electric gate repairs?

Routine component replacements, safety sensor alignments, and electrical repairs typically do not require permits. If your repair involves major structural post resets or extensive electrical trenching, Ironworks Gate Co. assists with compliance under City of Grapevine building codes and UL 325 safety guidelines.

How fast can a technician arrive for gate repair in Grapevine, and how are quotes provided?

You can call the 24-hour live dispatch line to schedule immediate same-day service across Grapevine. Technicians arrive fully equipped for single-visit diagnostics and provide a guaranteed, fixed-price repair quote on-site before any work begins.
