Quick Summary
Shifting North Texas soil frequently causes driveway tracks to buckle and sliding rollers to seize, making professional gate wheel repair in Euless vital to prevent burnt-out operator motors and serious security hazards. Ironworks Gate Co. resolves these structural issues by pairing track releveling with heavy-duty, precision-machined steel V-groove wheels equipped with dual-sealed bearings built to endure local ground movement. Property owners will learn how to diagnose damaged rollers, understand expected repair costs ranging from $120 to $1,400, and can call the 24/7 dispatch line to schedule a free on-site assessment for same-day service.
Gate Wheel Repair in Euless: Track and Wheel Service
If your sliding driveway gate is screeching, jumping off its rail, or stalling halfway across your driveway, professional gate wheel repair in Euless restores smooth, reliable operation. Heavy ornamental iron and custom wood gates place hundreds of pounds of downward force on small rolling assemblies. When a roller seizes or a track shifts out of alignment, the resulting drag strains your gate opener and compromises your property security.[2]
Repairing an off-track or grinding gate is also a safety priority. As recommended by specialists like Ironworks Gate Co., automated vehicular gates should adhere to standard industry safety practices, including structural stability, physical gate stops, and entrapment prevention. Leveling your ground track and installing precision-machined steel wheels keeps your gate moving smoothly while preventing panel detachment and motor burnouts.[1] See also Gate Repair in Colleyville – 10% Off & Free Estimate – On-Site in 60 Minutes.
Quick Answer: Gate wheel repair in Euless is estimated to cost between $120 and $450 for standard roller replacement and track realignment, based on internal industry estimates. Extensive repairs involving track welding, foundation anchoring, or operator gear servicing may range from $450 to $1,400. Shifting soil and uneven ground conditions are common causes of premature wheel failure, often requiring track releveling alongside wheel replacement to ensure a lasting fix.[3]
What Does Gate Wheel Repair Cost in Euless?
Estimated pricing for most residential sliding gate repairs generally falls between $120 and $450 for standard wheel swaps, guide roller adjustments, and minor track tuning. If ground movement has buckled your steel V-track or added rolling resistance has damaged your chain drive operator, overall repair costs are estimated to range between $450 and $1,400 depending on the parts and welding required.
Estimated Gate Service Price Breakdown
| Service Type | Estimated Cost Range (Internal Estimate) | Primary Scope of Work |
|---|---|---|
| Diagnostic Inspection | $85 – $150 | Load testing, bearing check, track level inspection, and safety loop testing |
| Off-Track Reset and Alignment | $150 – $275 | Jacking gate panel, realigning top guide rollers, and resetting wheels on track |
| Sliding Gate Wheel Replacement | $225 – $450 | Installing machined steel V-groove wheels with sealed dual bearings |
| Track Welding and Reinforcement | $250 – $550 | Straightening bent rail, welding broken joints, and resetting concrete anchor bolts |
| Operator Drive Service | $450 – $1,400 | Replacing worn drive sprockets, tensioning chains, and resetting limit switches |
Key Factors That Influence Your Repair Estimate
Several real-world factors dictate the final cost of a gate wheel repair:
- Gate Weight and Construction: A heavy 1,200-pound custom wrought iron estate gate requires heavy-duty tandem wheel assemblies and hydraulic jacks to service, increasing labor compared to a lightweight aluminum frame.
- Wheel Hardware Quality: Inexpensive cast iron rollers cost less upfront but crack under heavy loads. Cold-rolled steel wheels with maintenance-free sealed bearings cost slightly more but last for years under heavy daily cycling.
- Track Foundation Condition: If the concrete footing beneath your inverted V-track has cracked or settled unevenly, technicians from Ironworks Gate Co. must shim, anchor, or weld the rail to restore a flat rolling plane.
Why Do Driveway Gate Wheels Fail?
While normal wear occurs over time, shifting ground conditions and natural soil movement can cause driveways and concrete footings to heave or settle unevenly over time.
The Real Impact of Soil Shifting on Sliding Tracks
When soil shifts beneath a driveway, the steel V-track mounted to the concrete can twist or develop high spots. Even a slight heave across a driveway run concentrates the gate’s entire weight onto a single wheel instead of balancing it across two. This severe point load can crush internal ball bearings, deform the axle bolt, and force the wheel flange to grind against the rail edge.
How Binding Wheels Damage Gate Openers
When bearings seize or fill with grit, the rolling resistance spikes. Instead of gliding effortlessly, the gate drags across the track. This friction forces automatic gate operators (such as LiftMaster, Linear, or Elite units) to pull well beyond their rated amperage. Over time, this extra load strips internal drive gears, snaps drive chains, and burns out motor start capacitors.
Should You Repair or Replace Worn Gate Wheels and Tracks?
Need gate wheel repair in Euless?
We’re available now - call for a fast, free estimate.
A gate wheel with collapsed bearings or flat spots cannot be repaired with spray lubricants. According to Ironworks Gate Co., once the internal steel balls deform or the grease seal tears, full wheel replacement is the only lasting fix. Applying spray lubricants like WD-40 often makes the problem worse by washing out any remaining internal grease and attracting abrasive road dust.
Signs Your Gate Rollers Need Replacement
- High-Pitched Squealing or Grinding: Indicates metal-on-metal contact inside unsealed or dry bearings.
- Visible Flat Spots: Occurs when a seized wheel is dragged across the steel track instead of rolling.
- Gate Shudders or Jumps: The panel shakes violently during travel as the wheel hits track deformities.
- Opener Stops Midway: The operator’s built-in obstruction sensor triggers because the motor cannot overcome the rolling friction.
Comparing Roller Materials
Upgrading your rolling hardware during a repair helps protect your investment against shifting soil conditions.
| Feature | Standard Cast Iron | Machined Steel V-Groove | Tandem Steel Bogie Assembly |
|---|---|---|---|
| Load Capacity | Up to 500 lbs | 1,500 – 3,000 lbs | 3,000+ lbs (commercial / heavy iron) |
| Bearing Protection | Open or basic shield | Dual sealed maintenance-free | Dual sealed precision radial |
| Resistance to Ground Movement | Low (brittle flanges crack) | High (solid cold-rolled steel) | Maximum (distributes weight over 4 wheels) |
| Weldable Steel Box | No | Yes | Yes |
How an Off-Track Sliding Gate Is Repaired
Restoring a derailed or dragging sliding gate requires a methodical, step-by-step process to protect the gate structure and ensure long-term reliability:
- Securing and Lifting the Panel: Technicians support the gate panel using mechanical toe jacks and safety stands, taking tension off the drive chain and top guide rollers without bending the iron frame.
- Track Inspection and Leveling: The ground track is measured with a laser or precision level. Low spots caused by soil settling are shimmed, warped sections are straightened, and heavy-duty concrete wedge anchors are set to secure the rail.

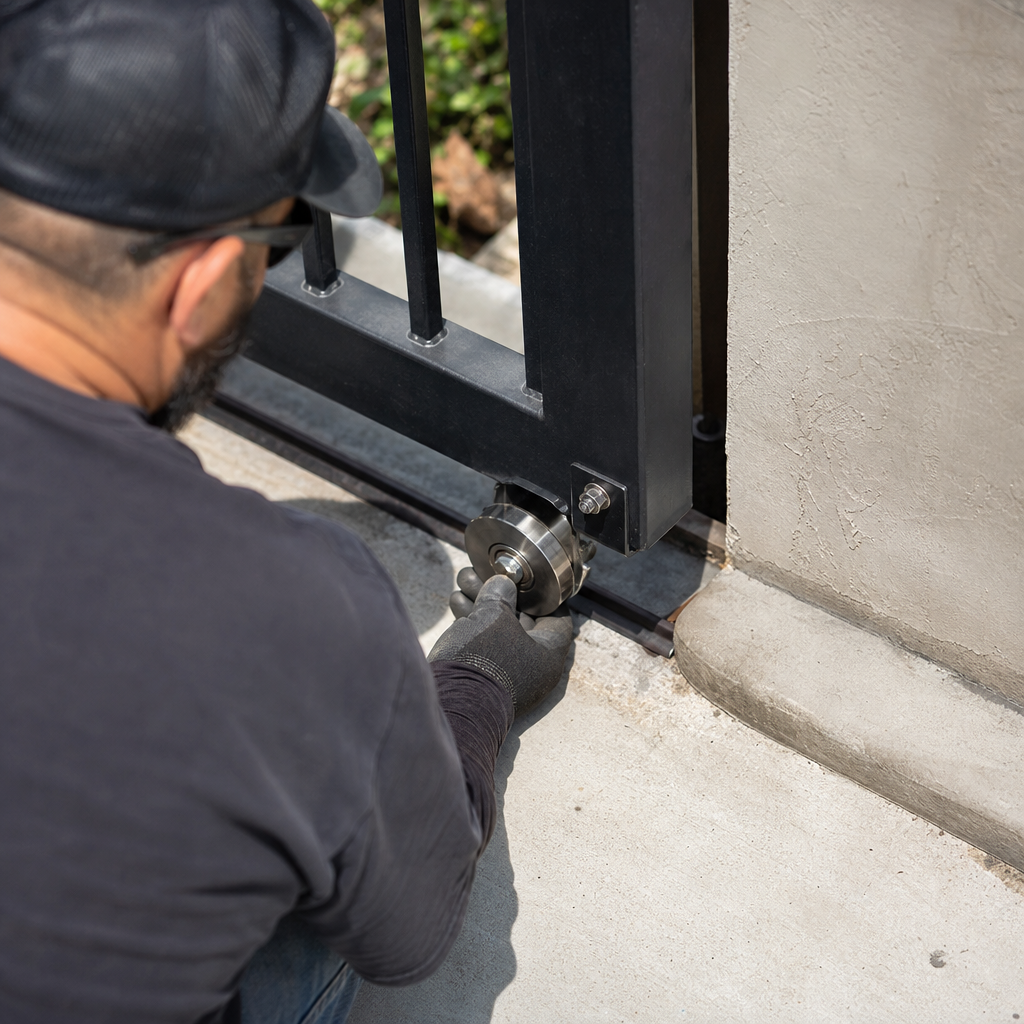

- Wheel Assembly Replacement: Damaged wheels are removed and replaced with solid machined steel V-groove rollers housed in heavy-gauge steel weld boxes, a standard practice for Ironworks Gate Co. technicians.
- Guide Bracket Alignment: Top guide rollers and capture brackets are aligned to prevent the gate from leaning or tipping during high North Texas wind events.
- Operator Recalibration: The drive chain tension is adjusted, limit switches are reset to prevent hard slamming against stop posts, and safety photo-eyes are verified to ensure proper operation.
Frequently Asked Questions About Gate Wheel Repair in Euless
How much does sliding gate wheel repair cost in Euless, TX?
Based on typical estimates, routine gate wheel replacement and track tuning generally cost between $120 and $450. Jobs requiring extensive track leveling, welding, or operator motor repairs can range from $450 to $1,400 depending on gate weight and hardware needs.
What are the signs that my driveway gate wheels or rollers need replacement?
Common warning signs include grinding or squeaking sounds during movement, visible rust or play in the axle, the gate stalling mid-cycle, or the bottom of the gate scraping directly on the steel track.
Can a sliding gate wheel be repaired, or does it need full replacement?
Worn gate wheels must be replaced. Once internal bearings wear out, seize, or crack, they cannot be rebuilt on-site. Replacing worn hardware with dual-sealed, machined steel wheels provides the most dependable long-term solution.
How quickly can a technician fix a stuck or off-track gate wheel in Euless?
Same-day service may be available depending on schedule availability and the required replacement parts. An experienced technician from Ironworks Gate Co. can inspect the track and wheel alignment to determine the appropriate repair timeline.
What causes driveway gate wheels to wear down or seize up?
Shifting soil and ground movement are common factors that can bend ground tracks and create heavy point loads on individual rollers. Other common causes include water intrusion in non-sealed bearings, road debris on the track, and everyday mechanical wear on heavy iron gates.
Can both residential and commercial gate wheels be serviced in Euless?
Yes. Gate services cover private single-family residential estate gates, commercial cantilever and V-track systems, and high-traffic entry points for gated communities and HOAs throughout Euless and neighboring communities.
Need gate wheel repair in Euless?
We’re available now - call for a fast, free estimate.
Sources
- Gates and Enclosures Business Guidance | CPSC.gov – cpsc.gov (2023)
- Gate Repair near Hurst, TX – bbb.org (2043)
- BBB Business Categories in Euless, TX | Better Business Bureau – bbb.org
Related reading: Gate Hinge Repair in Coppell | 10% Off & Free Estimate | On-Site in 60 Minutes
Related reading: Gate Repair in Bedford – Call Now-10% Off – On-Site in 60 Minutes – Free Estimate
Related reading: Gate Repair in Coppell | Call Now-10% Off | On-Site in 60 Minutes | Free Estimate
Frequently Asked Questions
How does a technician level a sunken driveway gate track without repouring the concrete?
Ironworks Gate Co. technicians use precision levels to identify low spots caused by shifting soil, then insert heavy-duty steel shims beneath the V-track. The rail is then secured with industrial concrete wedge anchors or welded to restore a flat rolling plane without repouring the foundation.
Why should you avoid using spray lubricants on squeaking sliding gate wheels?
Over-the-counter spray lubricants wash out any remaining factory grease and attract abrasive road dust directly into the bearing assembly, speeding up roller failure. Ironworks Gate Co. replaces damaged rollers with dual-sealed, maintenance-free steel wheels that require no topical lubrication.
Will replacing worn gate wheels fix an automatic gate opener that stops halfway?
Replacing seized rollers eliminates severe rolling resistance, preventing your gate opener from tripping its built-in safety obstruction sensors due to high motor drag. During same-day wheel repair, Ironworks Gate Co. also inspects chain tension and limit switches to ensure your operator runs smoothly.
